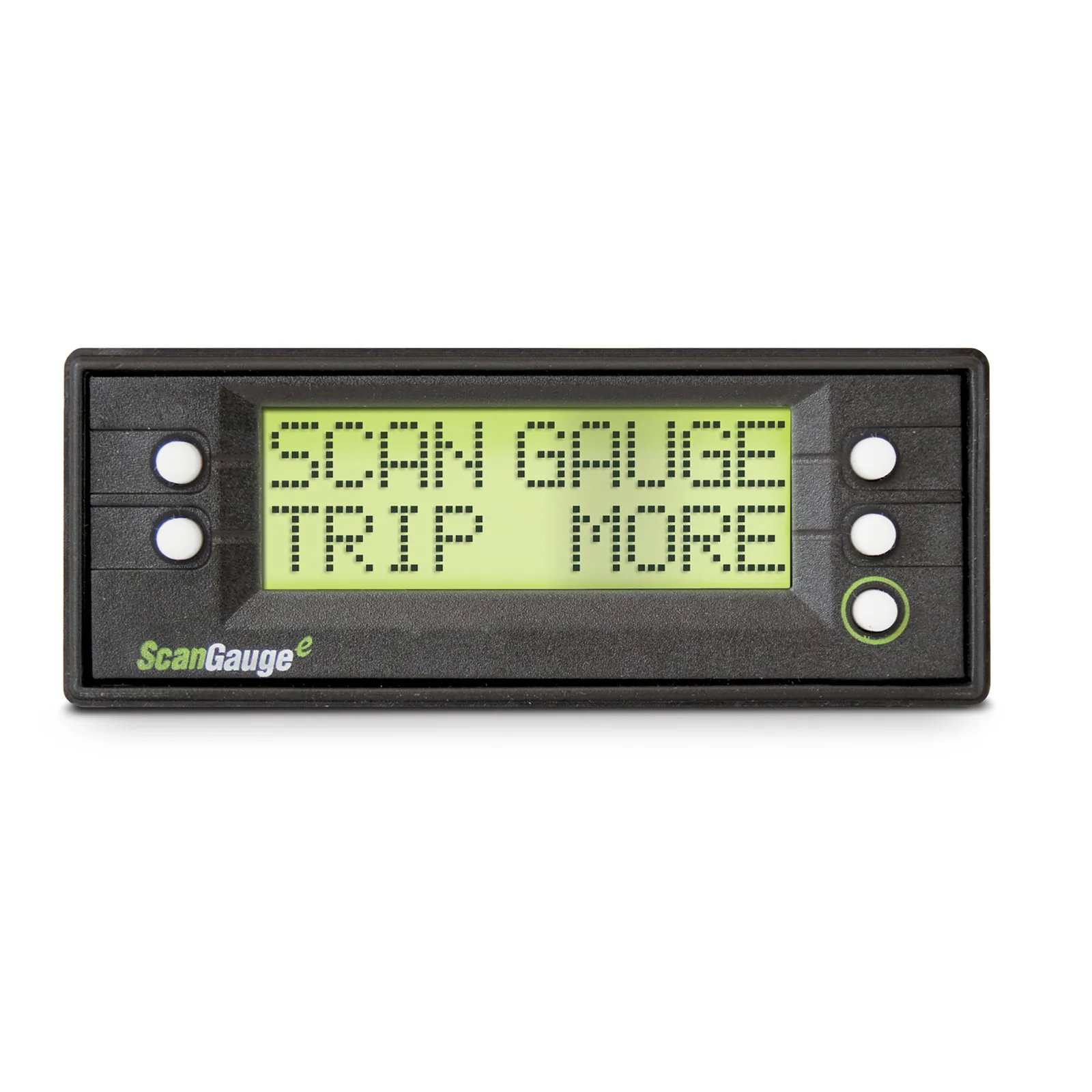

ScanGauge-E
Made in USA. 3 Yrs Limited Warranty on ScanGauge Monitors
The ScanGauge-E works with most OBDII compatible cars & light trucks. It provides you with real-time information about your vehicle’s fuel economy through an intuitive graphic display. Use the instant feedback provided by ScanGaugeE™ to adjust your driving style and improve your fuel economy.

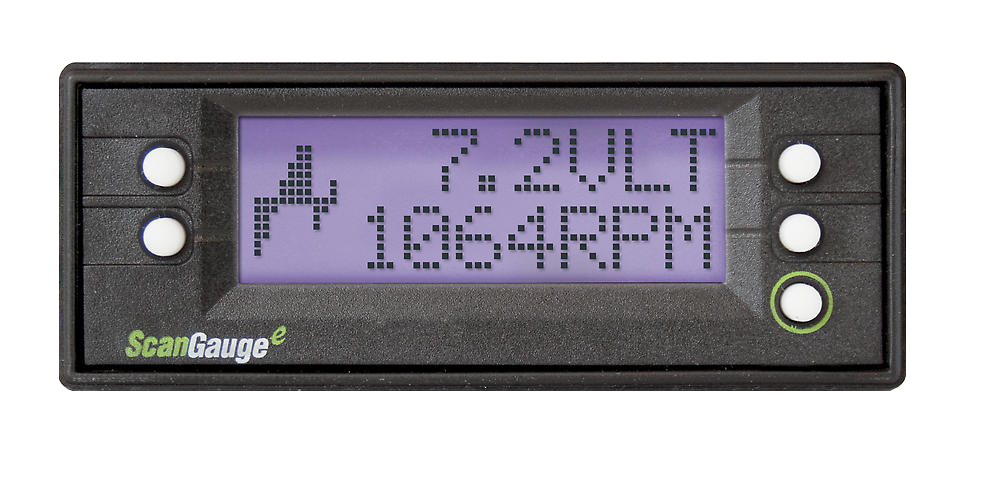

ScanGaugeE provides real-time gauges to show you what is going on “under the hood” with more than 15 built-in digital gauges. The gauge screen allows you to select and display 2 gauges at a time, so you can monitor the current operating conditions of your vehicle in real-time.
Reduce Your Carbon Footprint
Track your vehicle’s CO2 output in real-time. View information such as Current-CO2 and Trip-CO2. You can also track the days Total CO2 and Total CO2 for the tank within the built-in Trip Computers.
Learn To Improve Your Fuel Economy With Scangauge-E
ScanGauge-E provides real-time data about your vehicle’s instant and average fuel economy, fuel used, cost of fuel used for each trip, cost per KM, Litres per hour and more!
There are many ways to reduce your fuel usage and increase fuel economy. Real time feedback like what the ScanGauge provides is one of the most effective.
*The information available may vary depending on vehicle's make and model. If the information is not available no data will be shown for it. If the same gauge is selected for more than one position, only one of them will show data.
| Gauge | Name |
|---|---|
| AVG | Average Fuel Economy |
|
CLSD LP / OPEN LP |
Fuel System Loop Status |
| CPM | Cost Per Mile/KM |
|
FIA / CIA |
Intake Air Temperature |
| FPR | Fuel Pressure |
|
FWT / CWT |
Water Temperature |
|
GPH LPH |
Gallons Per Hour Litres Per Hour |
| MAP | Manifold Absolute Pressure |
|
MPG KPG MPL LHK KPL |
Miles Per Gallon Kilometers Per Gallon Miles Per Litres Liters Per 100Km Kilometeres Per Liter |
|
MPH KPH |
Miles Per Hour Kilometers Per Hour |
| RPM | Revolutions Per Minute |
| TFC | Trip Fuel Cost |
| TPS | Throttle Position Sensor |
| VLT | Battery Voltage |
| IGN | Ignition Timing |
| LOD | Engine Loading |
With five built-in trip computers, the ScanGauge can keep track of everything from fuel cost to distance traveled and everything in between. Data is stored on the ScanGauge and is retained even when the power is disconnected. Each trip computer starts automatically and information is available anytime during the trip.
| Time & Distance Trip Computer | Fuel & Tank Trip Computer |
|---|---|
| ScanGauge includes three trip computers based on time and distance. They include the Current Trip, Today Trip and Previous Day Trip. Each trip computer starts automatically and tracks the following parameters: | The ScanGauge includes two trip computers based on the current tank of fuel. They include the Current Tank and Tank to Empty. Each trip computer starts automatically when you tell ScanGauge you have filled your tank. |
| KM/L / MPG | KML / MPG for Current Tank |
| Fuel Used | Fuel Used on Current Tank |
| Max Coolant Temperature | Tank to Empty |
| KMs Driven | Distance to Empty |
| Max RPM | Distance Until Empty |
| Hours Driven | Hours Driven on Current Tank |
| Max KPH | Hours to Empty |
| Average KPH | Average Speed |
| Fuel Cost | Fuel Used Cost |
The ScanGauge E can check for Engine Diagnostic Trouble Codes (DTCs) and if found, can display how many there are and the Trouble Codes themselves. Using the internet or repair manuals, these can be translated to the failed component and repairs can be made.
Easy to Install No Tools Required
Installs in just minutes without tools. Simply plug the ScanGauge into the diagnostic connection under the dash.
No Batteries Required
The single connection to the diagnostic connector under the dashboard is all that is needed.
Automatic Protocol Determination
ScanGauge automatically determines the protocol your vehicle uses and connects.
6-Foot Cord and Velcro® Attachment
The ScanGauge can be mounted up to 6 feet from the under-dash diagnostic connector. The included Velcro® attachment system allows the ScanGauge to be quickly detached and then used to troubleshoot other vehicles.
User-Friendly Menu-Driven Operation
Simple 5-button operation allows you to quickly and easily access the powerful features of the ScanGauge.
Colour Backlight Display
Match your instrument panel for an integrated look.
English & Metric Units
The Digital Gauges and Trip Computer information can be shown in either English or Metric units of measure, including KM’s, Litres, Celsius, and kPA.
.png)
The ScanGauge-E is compatible with almost all OBDII compatible cars and light trucks sold worldwide. In Australia, most vehicles sold after 2010 are OBDII compatible. To see a list of compatibility check HERE.
| SKU | SGEFFP |
| Barcode # | 788006005129 |
| Brand | ScanGauge-E |
| Unit Of Measure | ea |
